Parts and Accessories
Aquarius Technologies provides a wide range of parts and accessories to compliment your controller. a summary and description of some of these van be found below
Chlorine | Chloramine

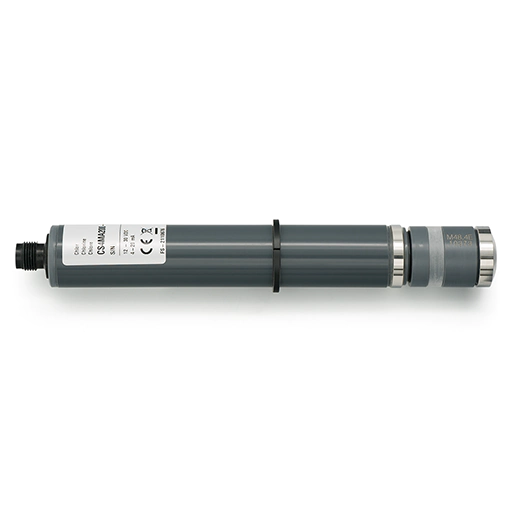

TARAline CS4MA-200 Free Chlorine Sensor
This membrane sensor is made for the measurement of Free Chlorine in water. * Reduced dependence on pH.
Specifications:
- Measurement System: Membrane covered, amperometric potentiostatic 3-electrode system
- Reference: ECS2.1/GEL
- pH Range: pH4 – pH9
- Measurement Range: 0.5ppm to 200ppm (CS4MA-200)
- Resolution: 0.1ppm (CS4MA-200)
- Working Temp: 0°C to +45°C (in water)
- Max Pressure: 3 Bar (retaining ring), 0.5 Bar (no retaining ring)
- Flow Rate: Approx. 15-30 l/hr (33 – 66 cm/s) in TARAflow FLC
- Output: Analog 4-20mA
- Dimensions: 190mm L (5-pole-M12)

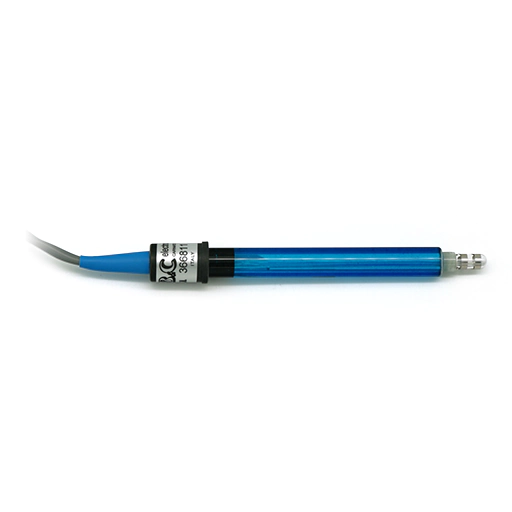

SZ283 CI², O³ and CIO² Potentiostatic Electrode
This sensor is made for the measurement of Free Chlorine, Chlorine Dioxide and Dissolved Ozone in water
Specifications:
- Electrodes: 2 Platinum Rings
- Reference: ECS2.1/GEL
- Body: Glass
- Cable: 3m
- Max Pressure: 10 Bar at 20°C
- Dimensions: 110mm x12mm
TARAline CP4.0 Total Chlorine Sensor
This membrane sensor is made for the measurement of Total Chlorine (Free Chlorine + Combined Chlorine) in water. * Reduced dependence on pH.
Specifications:
- Measurement System: Membrane covered, amperometric potentiostatic 3-electrode system
- Reference: ECP1.4/GEL
- pH Range: pH4 – pH12
- Measurement Range: 0.05ppm to 10ppm (CP4.0MA-10)
- Resolution: 0.01ppm (CP4.0-MA10)
- Working Temp: 0°C to +45°C (in water)
- Max Pressure: 3 Bar (retaining ring), 0.5 Bar (no retaining ring)
- Flow Rate: Approx. 15-30 l/hr (33 – 66 cm/s) in TARAflow FLC
- Output: Analog 4-20mA
- Dimensions: 190mm L (5-pole-M12)
Turbidity

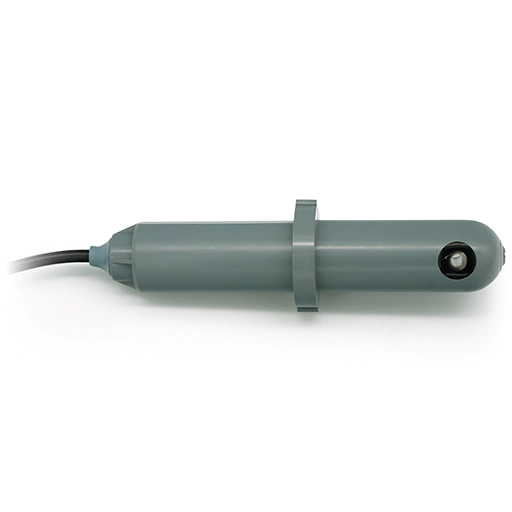

ST-730 Series Inline Turbidity Probes
These series of probes are more robust and tolerant to fouling, particulate and air bubble challenges compared to alternative turbidity meter designed for relatively clean water applications. Isolated 4-20mA analogue and RS-485 digital outputs
Applications:
- Industrial process & Cooling Water
- Fresh | Brackish | Sea Water (CPVC version only)
- Raw | Influent Water
- Wastewater Effluent
- Surface Water | Storm Water
Models:
- ST-730:
0 – 100 NTU Range | 0.1 NTU Resolution | ≤ 100 psi - ST-730B:
0 – 1,000 NTU Range | 1.0 NTU Resolution | ≤ 100 psi - ST-730S:
0 – 100 NTU Range | 0.1 NTU Resolution | ≤ 290 psi - ST-731:
0 – 10 NTU Range | 0.05 NTU Resolution | ≤ 100 psi - ST-735:
0 – 10,000 NTU Range | 10.0 NTU Resolution | ≤ 100 psi
Combinations

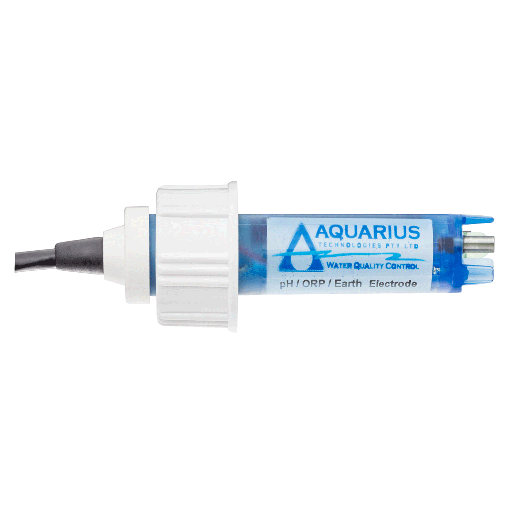

Aqurius Techologies PH / ORP Probe
Combination pH / ORP probes with built in Ground reference
Aqurius Techologies FCT Probe
Flow / Conductivity / Temperature Probe
SZ283 CI², O³ and CIO² Potentiostatic Electrode
This sensor is made for the measurement of Free Chlorine, Chlorine Dioxide and Dissolved Ozone in water
Specifications:
- Electrodes: 2 Platinum Rings
- Reference: ECS2.1/GEL
- Body: Glass
- Cable: 3m
- Max Pressure: 10 Bar at 20°C
- Dimensions: 110mm x12mm
Tank Alarms

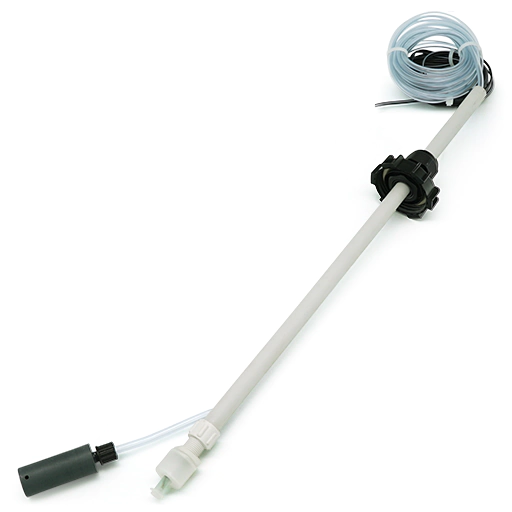

Low Level | Empty Tank Alarms
- Tank Alarm (Small): Adjustable to 500mm height with 3m pump tube and lead – 1 required per tank
- Tank Alarm (Large): Adjustable to 1000mm height with 5m pump tube and lead – 1 required per tank
Flow Cells

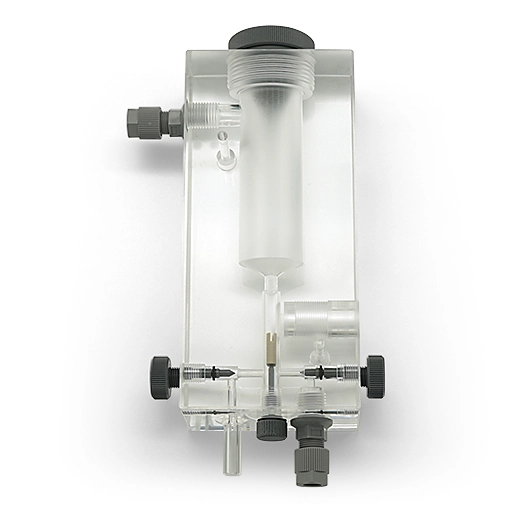

TARAflow FLC-1.1 Flow Cell
Flow Cell for Membrane Sensor. Rated @ 45°C | 800kPa
TARAflow FLC-3 Flow Cell
Flow Cell for Membrane Sensor (High Temp). Rated @ 70°C | 800kPa
pH Buffers

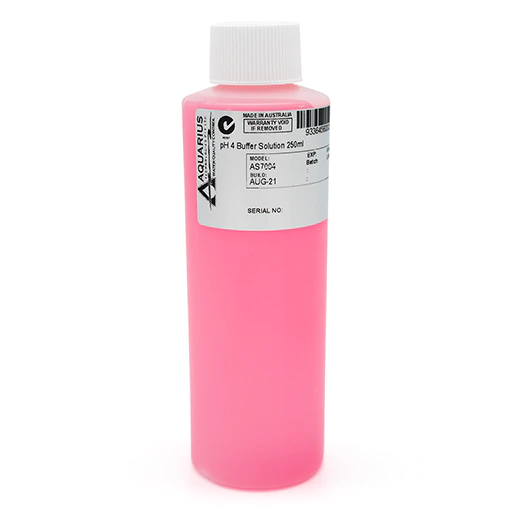

Aquarius Technologies - AS7004
pH Buffer Solution 4.01 - 250ml
Aquarius Technologies - AS7007
pH Buffer Solution 7.01 - 250ml
Aquarius Technologies - AS7010
pH Buffer Solution 10.0 - 250ml
ORP Verification

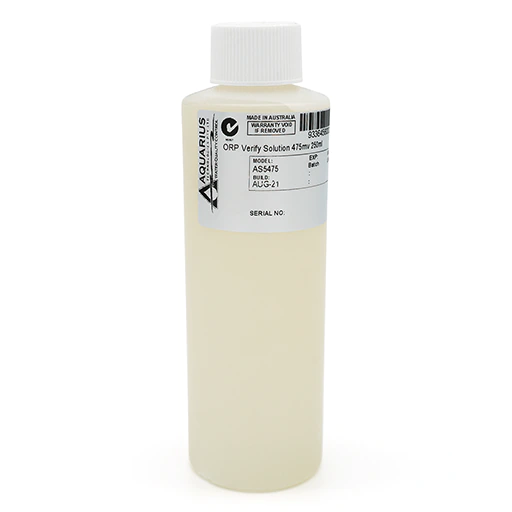

Aquarius Technologies - AS5475
ORP Verification Solution 475mV
Combinations pH Buffers + ORP Calibrations

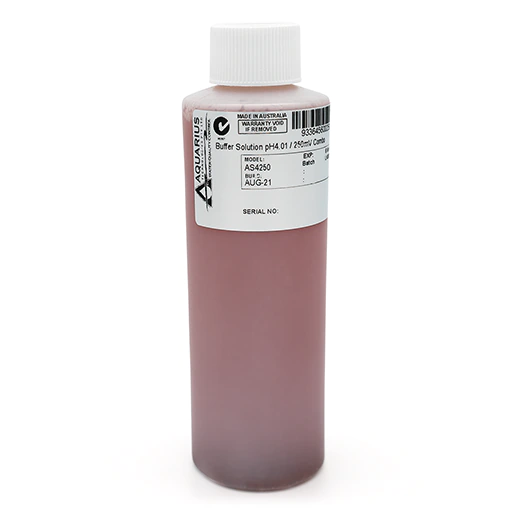

Aquarius Technologies - AS4250
Combination pH Buffer Solutions 4.01 + ORP Calibration Solution 250mV - 250ml

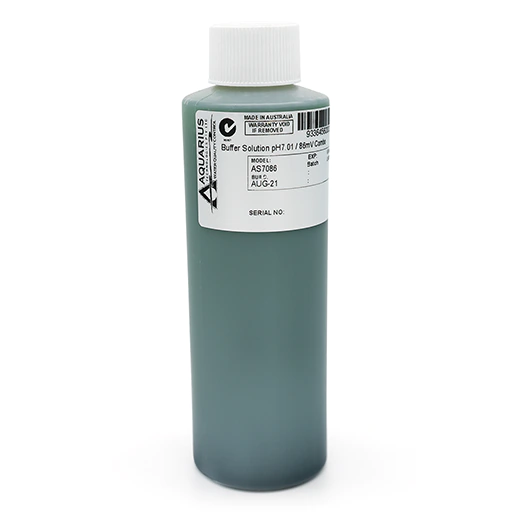

Aquarius Technologies - AS7086
Combination pH Buffer Solutions 7.01 + ORP Calibration Solution 86mV - 250ml
Conductivity Standards

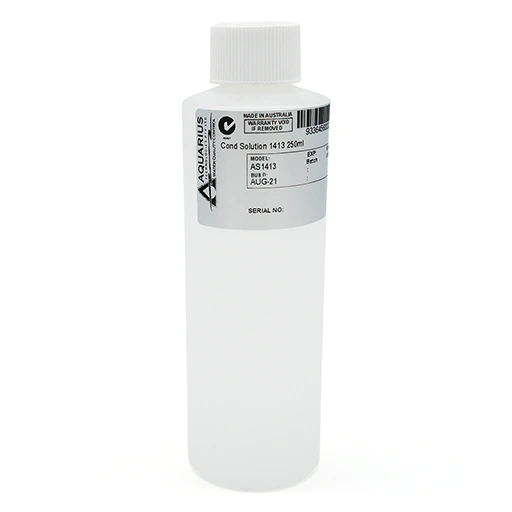

Aquarius Technologies - AS1413
Conductivity Standard 1413uS/cm or 1.41mS/cm @ 25°C - 250ml
Aquarius Technologies - AS2764
Conductivity Standard 2764uS/cm or 2.76mS/cm @ 25°C - 250ml

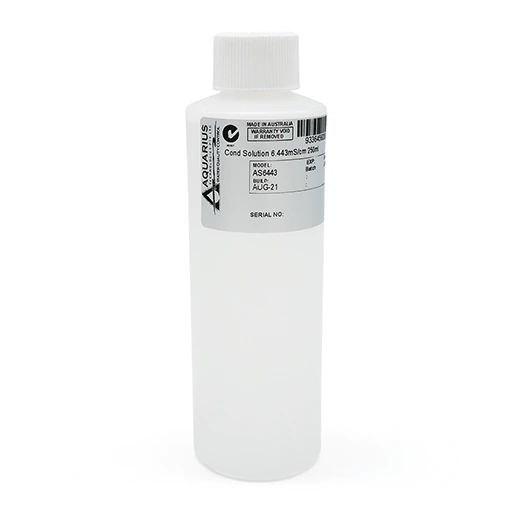

Aquarius Technologies - AS6443
Conductivity Standard 6443uS/cm or 6.44mS/cm @ 25°C - 250ml
Electrode Cleaning
Aquarius Technologies - AS9500
Electrode Cleaning Solution for Removal of Inorganic Deposits on Electrodes- 250ml
Perostaltic

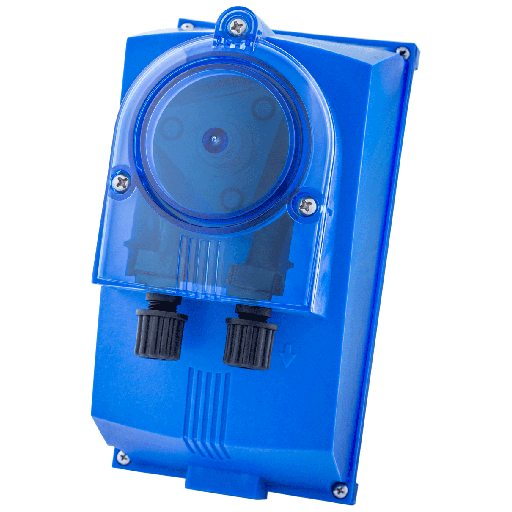

Aquarius Technologies Perostaltic Pumps
Power, robust and reliable peristaltic dosing pumps.
- AP Peri 1: Peristaltic Pump rated @ 1.0 l/hr with 3 pin plug
- AP Peri 3: Peristaltic Pump rated @ 3.0 l/hr with 3 pin plug
Pulse

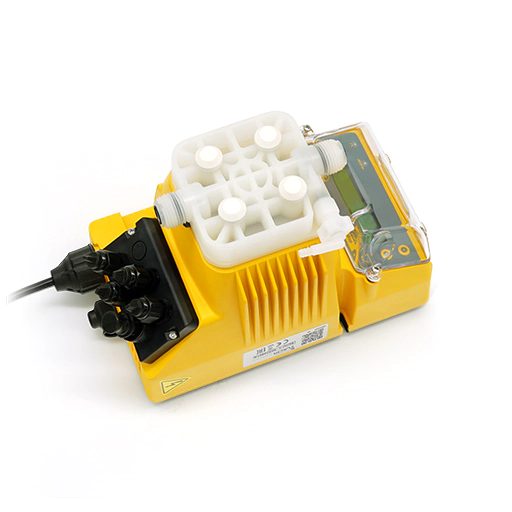

Athena AM3 Pulse Pump
Dosing pump with option of receiving external digital signal (pulse emitter water meter) or an analogue signal 4-20mA.
Manual flow regulation 0->100%
Specifications:
- Flow Rate: 10 l/hr
- Max. Pressure: 1,000kPa
- Strokes/Min: 300
- Power Consumption: 40 watt
- Weight 4kg
- IP Rating: IP65
Athena AM4 Pulse Pump
Dosing pump with option of receiving external digital signal (pulse emitter water meter) or an analogue signal 4-20mA.
Manual flow regulation 0->100%
Specifications:
- Flow Rate: 20 l/hr
- Max. Pressure: 500kPa
- Strokes/Min: 300
- Power Consumption: 40 watt
- Weight 4kg
- IP Rating: IP65

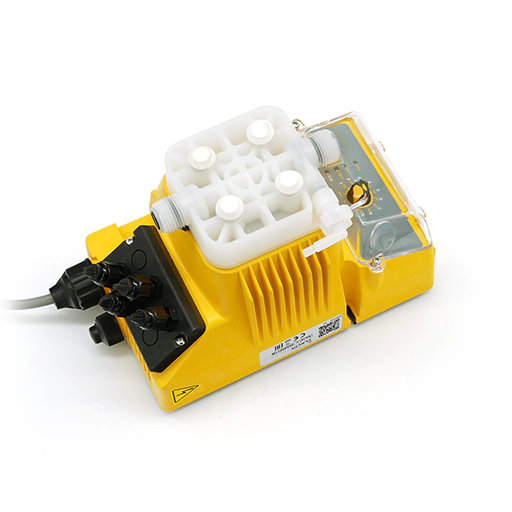

Olimpia Pulse Pump
Variable + Impulse electromagnetic dosing pump.
- Olimpia OL.BB: rated 2.0 l/hr @ 700kPa | IP65
- Olimpia OL.BD: rated 5.0 l/hr @ 500kPa | IP65
Solenoids

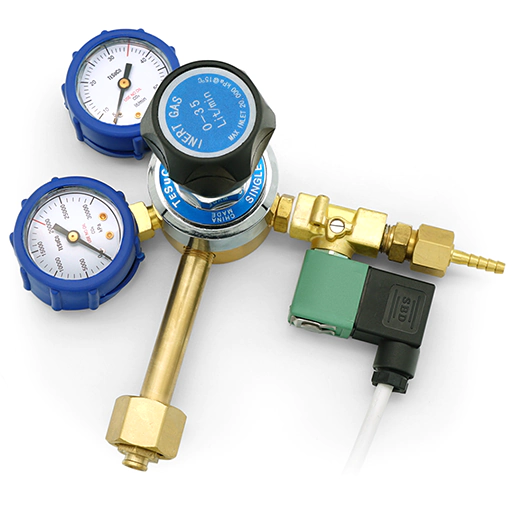

CO² Regulator with 240VAC Solenoid Control
Specifications:
- 0-35 l/min CO² Regulator
- Dual Gauges - Tank | Outlet Pressure
- High Qualoity Gas Solenoid with AU 240VAC Plug
- Brass Fittings
- Barbed Brass CO² Outlet
A wide range of solenoid sizes and options are available from Aquarius Technologies

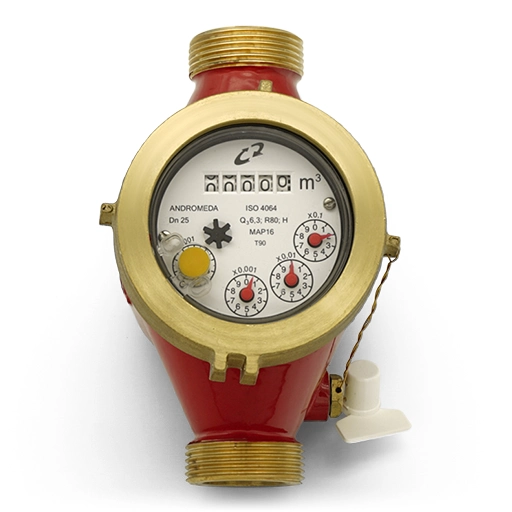

Turbine Impulse Water Meters
Turbine Water Meters with Pulse Emitter (Reed Switch)
Available in various sizes
Models:
- RH1 Water Meter:
Hot | Cold 15mm - Max Flow 5 m³/h, 4 lmp/L - RH2 Water Meter:
Hot | Cold 20mm - Max Flow 5 m³/h, 4 lmp/L - RH3 Water Meter:
Hot | Cold 25mm - Max Flow 7 m³/h, 4 lmp/L - RH4 Water Meter:
Hot | Cold 40mm - Max Flow 20 m³/h, 4 lmp/L - RH5 Water Meter:
Hot | Cold 50mm - Max Flow 30 m³/h, 4 lmp/L

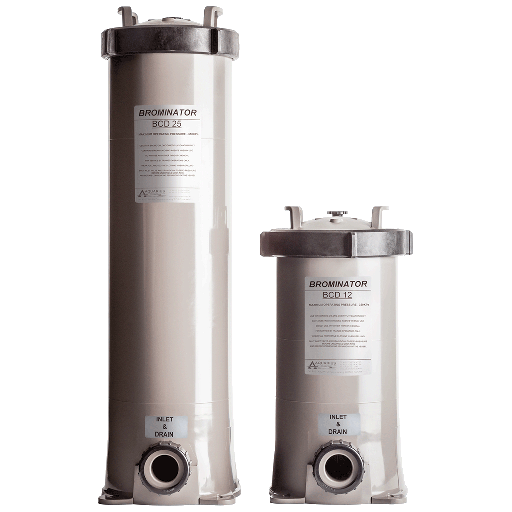

Brominators
Pressure Rated Feeders for the Controlled Dissolution of BCDMH - Bromine Tablets or Briquettes
Models:
- BCD12:
12kg capacity rated to 350kPa. Internal manifold designed for erosion efficiency. * Requires 15mm Solenoid - BCD25:
25kg capacity rated to 350kPa. Internal manifold designed for erosion efficiency. * Requires 20mm Solenoid - BCD100:
100kg capacity rated to 350kPa. Internal manifold designed for erosion efficiency. * Requires 25mm Solenoid

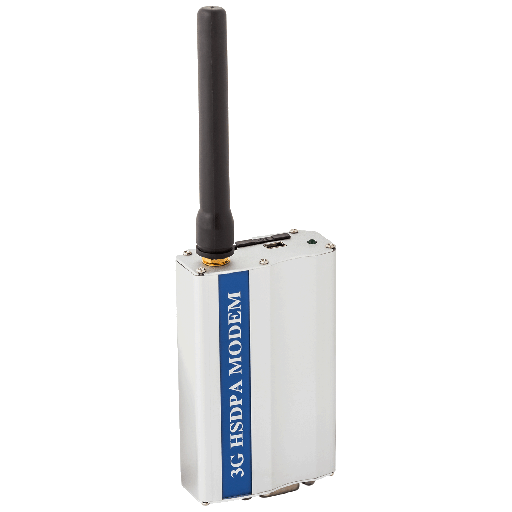

Cellular Moderm | SIM Web Access
Models:
- Modem 4G 850:
Web communication bundle with 4G modem (Add Web Access)
* Ultima models only - Modem 4G 900:
4G Modem - 900mhz to enable full web control capabilities | alarming - Overseas users only - Web Access:
SIM Card and annual contract for using Aquarius Technologies' AquaReporter Web Portal (Cloud)
Wi-Fi | Ethernet
Models:
- Wi-Fi Adapter:
Wi-Fi Adapter Replacement
* Ultima models only - Ethernet Adapter:
Ethernet Adapter Replacement
* Ultima models only
Ultima • BMS | Modbus • Board
Models:
- BMS Board:
PCB Car to Convert 8 Signals to 4-20mA for BMS System
*Ultima models only - Modbus Board:
PCB Card to Enable Modbus Capabilities to BMS | DDC System
*Ultima models only
